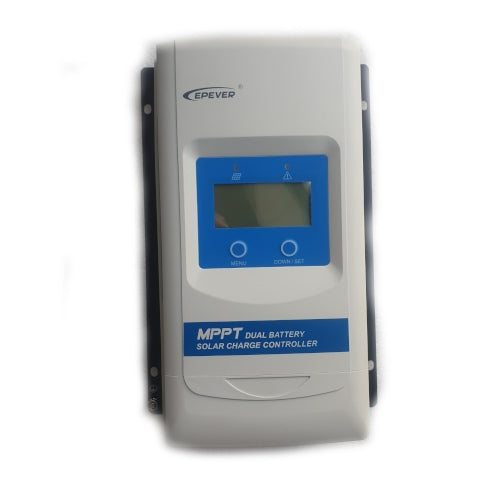

EP Solar MPPT type controller is a 30 Amp solar controller. It is used for off-grid solar systems and performs with all our fridges.
MPPT (or Maximum Power Point Tracking) is currently, as far as we know, the most efficient type of solar controller and operates best under all environmental conditions.
This is a professional high quality 30 amp off-grid solar controller, ideally suited for motor-homes, caravans, and small off-grid homes or baches.
This model allows the loads to be switched separately on the positive terminal, this eliminates potential faults and issues associated with continuous earth terminals in AV splitters, TV satellite systems, and FM splitters on vehicles.
Control the loads, for continues, timed settings or dawn and dusk settings
This is the recommended controller used by our technicians
Please order a digital display separately.
These units can be installed at our workshop in Silverdale. Please contact us for further information regarding installation costs. Tel: 09 4278247 Email: info@vantagerv.nz
MPPT (or Maximum Power Point Tracking) is currently, as far as we know, the most efficient type of solar controller and operates best under all environmental conditions.
This is a professional high quality 30 amp off-grid solar controller, ideally suited for motor-homes, caravans, and small off-grid homes or baches.
This model allows the loads to be switched separately on the positive terminal, this eliminates potential faults and issues associated with continuous earth terminals in AV splitters, TV satellite systems, and FM splitters on vehicles.
Control the loads, for continues, timed settings or dawn and dusk settings
This is the recommended controller used by our technicians
Please order a digital display separately.
These units can be installed at our workshop in Silverdale. Please contact us for further information regarding installation costs. Tel: 09 4278247 Email: info@vantagerv.nz
Features
- LED indicator shows charging status
- LED indicator shows battery status or system errors
- Multipal load control modes
- Temperature sensor for regulating ideal charging and discharging values
- Indicators for setting a timer or battery type
- LED digital display, displays the load and work mode status
- Setting button for load work mode status selection
- Solar Module terminal connection blocks
- Battery terminal connection blocks
- Load terminal connection blocks
- RJ45 Communication Interface for remote digital display
Technical Information
- System voltage 12/24 VDC Auto
- Rated charge current 30A
- Rated discharge current 30A
- Max PV input voltage 150v
- Max PV Input power for a: 12-volt system 390 watts / 24-volt system 780 watt
- Dimensions: 285 mm Long x 160 mm Wide x 64 mm Deep
- 1 Year Factory Warranty
Minimum Requirements:

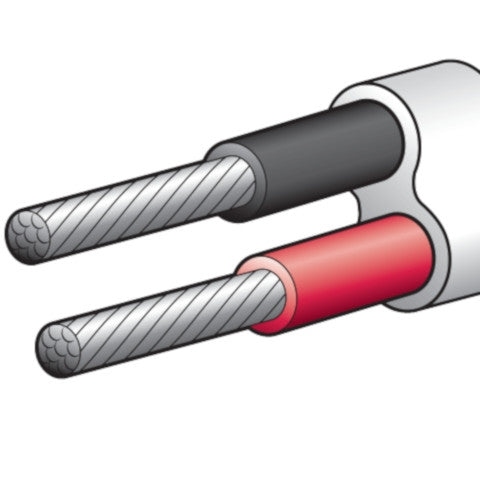

- Recommended cable diameter from the solar panel should be no less than 4mm2
- The solar controller should always be fitted in a dust-free dry environment.
- Always run loads from the load terminals on the right of the solar controller, unless the draw is greater than 20 Amp. That way you can always monitor how much energy you are generating and using.
