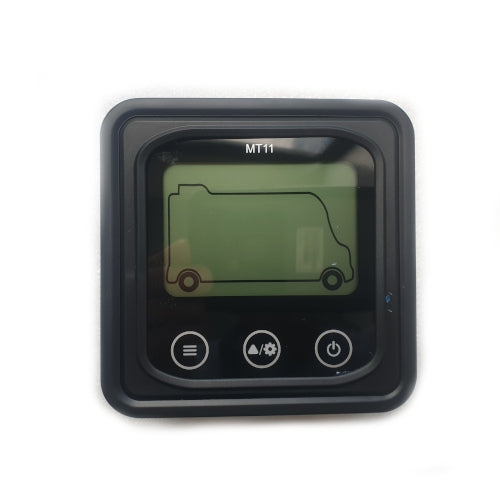

Remote Display meter for the DuoRacer dual battery EP Solar Controllers

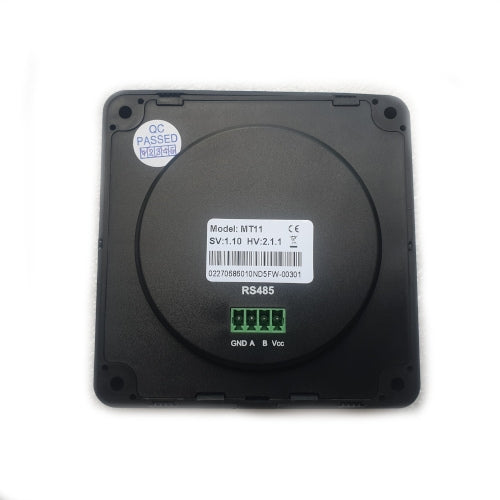

This MT11 display works using an RS485 communication bus to connect with the solar controller. And displays charge details of both the start battery and the house battery
Have complete control over the solar system using this one display
Turn off all loads with one button, the solar system will remain on and charging whilst the loads are turned off.

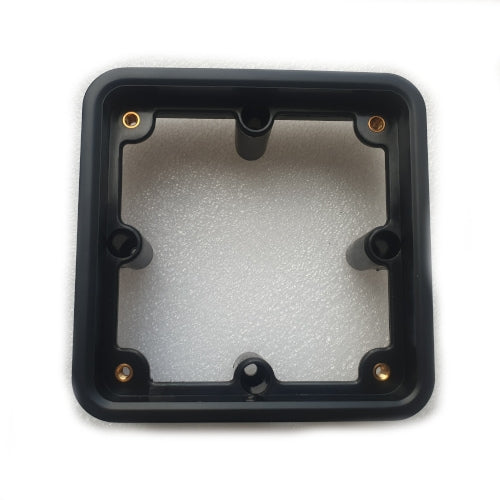

Flush mount cut out dimensions 88.6 x 88.6mm
One button isolates all loads
Shows The following:
DR1106N-DDB/DDS
DR1206N-DDB/DDS
DR2106N-DDB/DDS
DR2206N-DDB/DDS
DR3106N-DDB/DDS
DR3206N-DDB/DDS
DR2210N-DDB/DDS
DR3210N-DDB/DDS
This MT11 display works using an RS485 communication bus to connect with the solar controller. And displays charge details of both the start battery and the house battery
Have complete control over the solar system using this one display
Turn off all loads with one button, the solar system will remain on and charging whilst the loads are turned off.
Features
Overall size: 114 x 114 x 32.7mmFlush mount cut out dimensions 88.6 x 88.6mm
One button isolates all loads
Shows The following:
- PV Amps in
- Load Amps out
- Voltage at PV panel
- Voltage at Battery
- Voltage at load
- State of charge
- Controller temp
- Control all the settings from this panel
DR1106N-DDB/DDS
DR1206N-DDB/DDS
DR2106N-DDB/DDS
DR2206N-DDB/DDS
DR3106N-DDB/DDS
DR3206N-DDB/DDS
DR2210N-DDB/DDS
DR3210N-DDB/DDS
