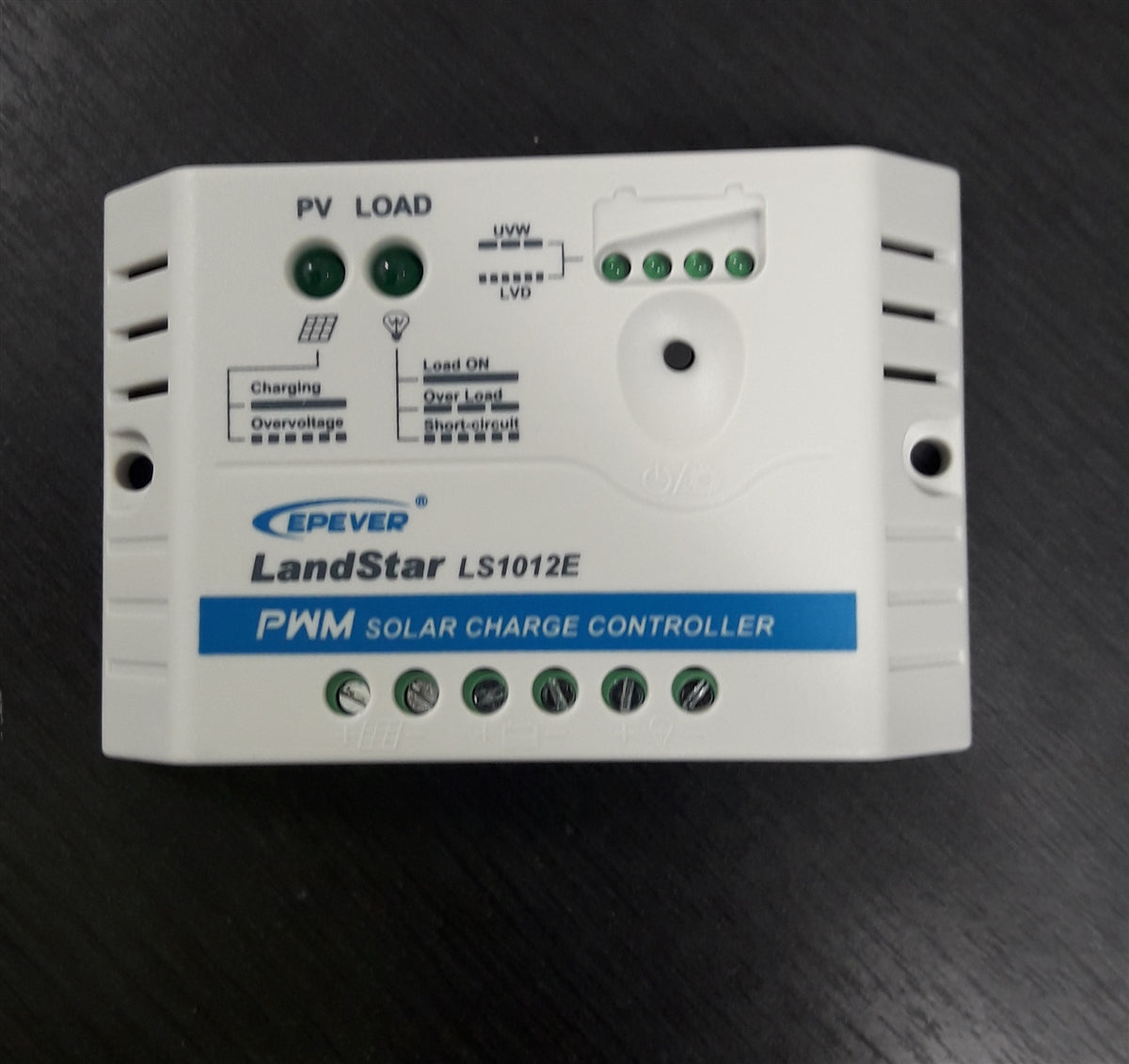

The LANDSTAR AU Solar PWM type controller is a 10 Amp solar controller broadly used for motor-home and Caravan solar systems. This controller is the most basic type of solar controller with no display. Suitable for situations where the energy consumption is low and no monitoring is required.
These units can be installed at our workshop in Silverdale. Please contact us for further information regarding installation costs. Tel: 09 4278247 Email: info@vantagerv.nz
Features
- 3 stage PWM type charging Bulk, boost Float
- Connection for Remote Temperature sensor for monitoring battery temp

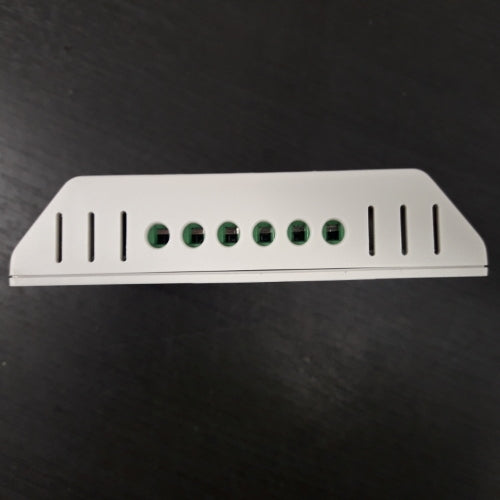

- Solar Module terminal connection blocks
- Battery terminal connection blocks
- Load terminal connection blocks
Technical Information
- System voltage 12
- Rated charge current 10A
- Rated discharge current 10A
- Common Negative
- Max PV input voltage 50v
- Max PV Input power for a: 12 volt system 120 watt / 24 volt system 240 watt
- Dimension: 92.8mm x 20.5mm x 65mm (wxdxh)
Minimum Requirements
- Recommended cable diameter for cables should be no more than 2.5mm2
- The solar controllers should always be fitted in a dust-free, dry environment.
- Always run loads from the load terminals on the right of the solar controller, unless the draw is greater than 10 Amp. That way you can always monitor how much energy you are generating and using
- Always use external inline fuse holders
