Clearance stock

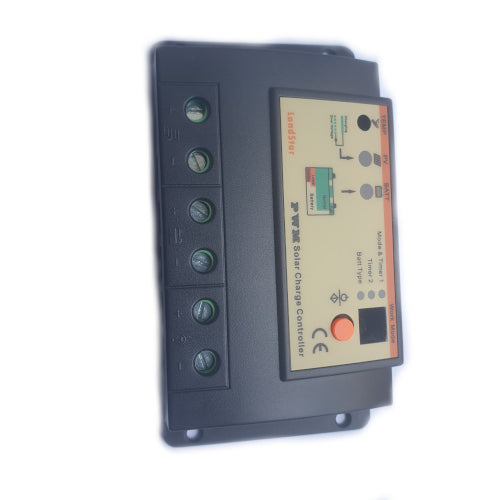

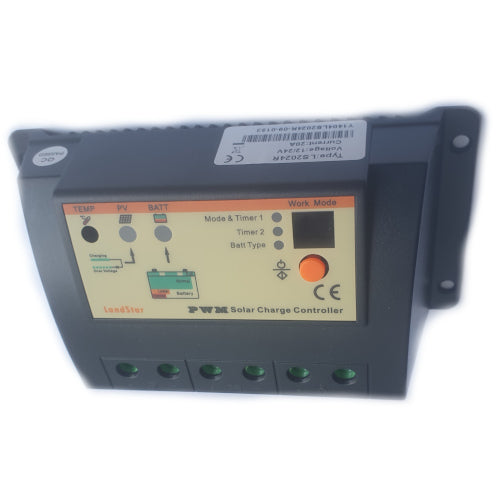

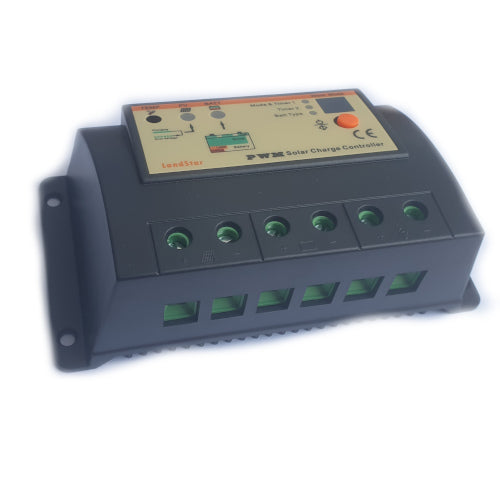

The LandStar EPEVER trusted brand is a 20 amp PWM-type Solar controller. Ideal for motorhomes or boats for charging the batteries via Solar.. The controller has very basic charge indicators displayed using lights. A remote display can be connected to the RJ-45 socket
These units can be installed at our workshop in Silverdale. Please contact us for further information regarding installation costs. Tel: 09 4278247 Email: info@vantagerv.nz
Features
- 3 stage PWM type charging Bulk 14.6V, Boost 14.4V, and Float 13.8V
- Solar Module terminal connection blocks
- Battery terminal connection blocks
- Load terminal connection blocks
Technical Information
- System voltage 12 or 24 volts
- Rated charge current 20A
- Max PV input voltage 30v
- Max PV Input power for a: 12-volt system 240 watt / 24-volt system 480 watt
- Dimension: 145mm x 45mm x 75mm (wxdxh)
