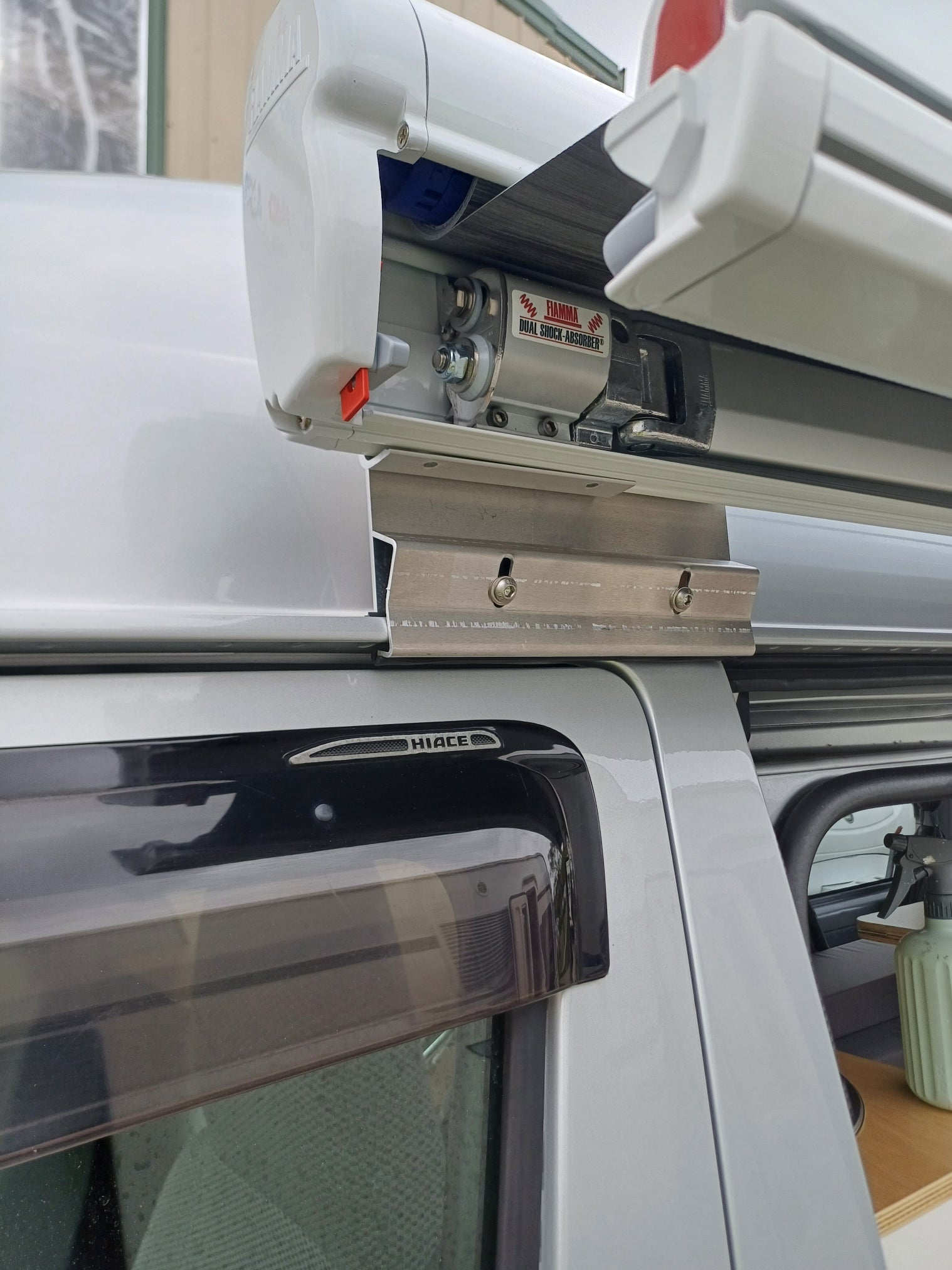

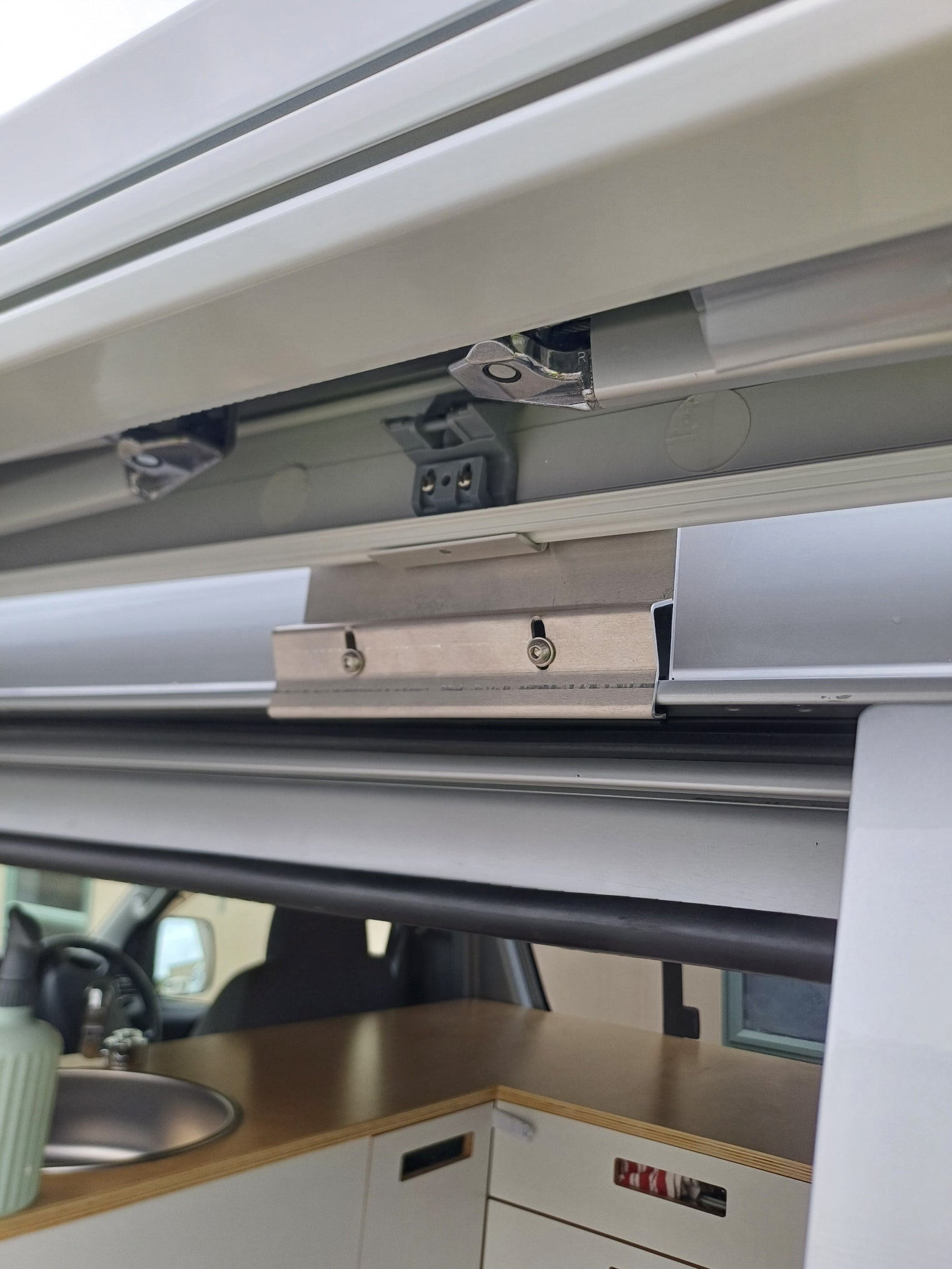

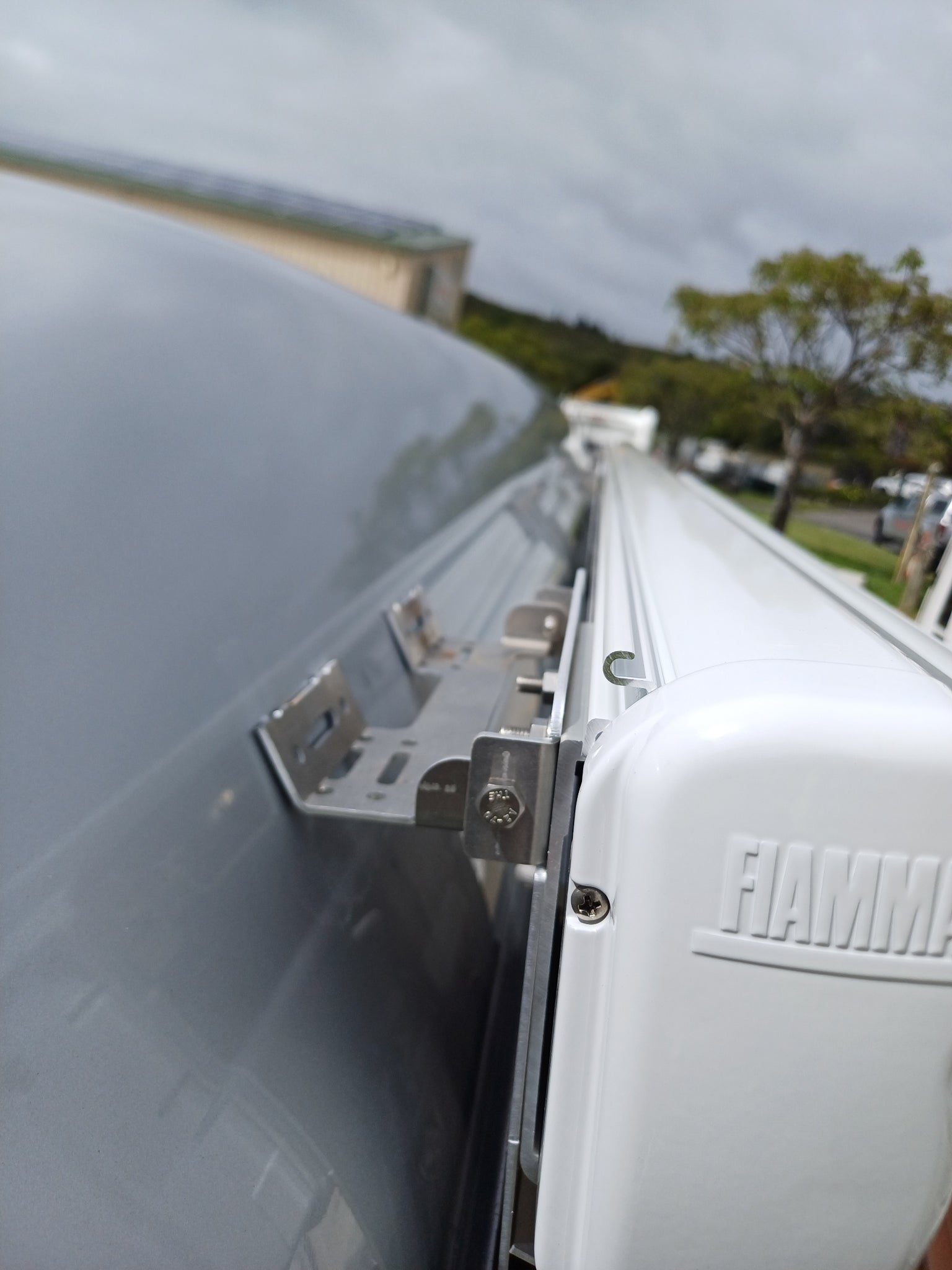

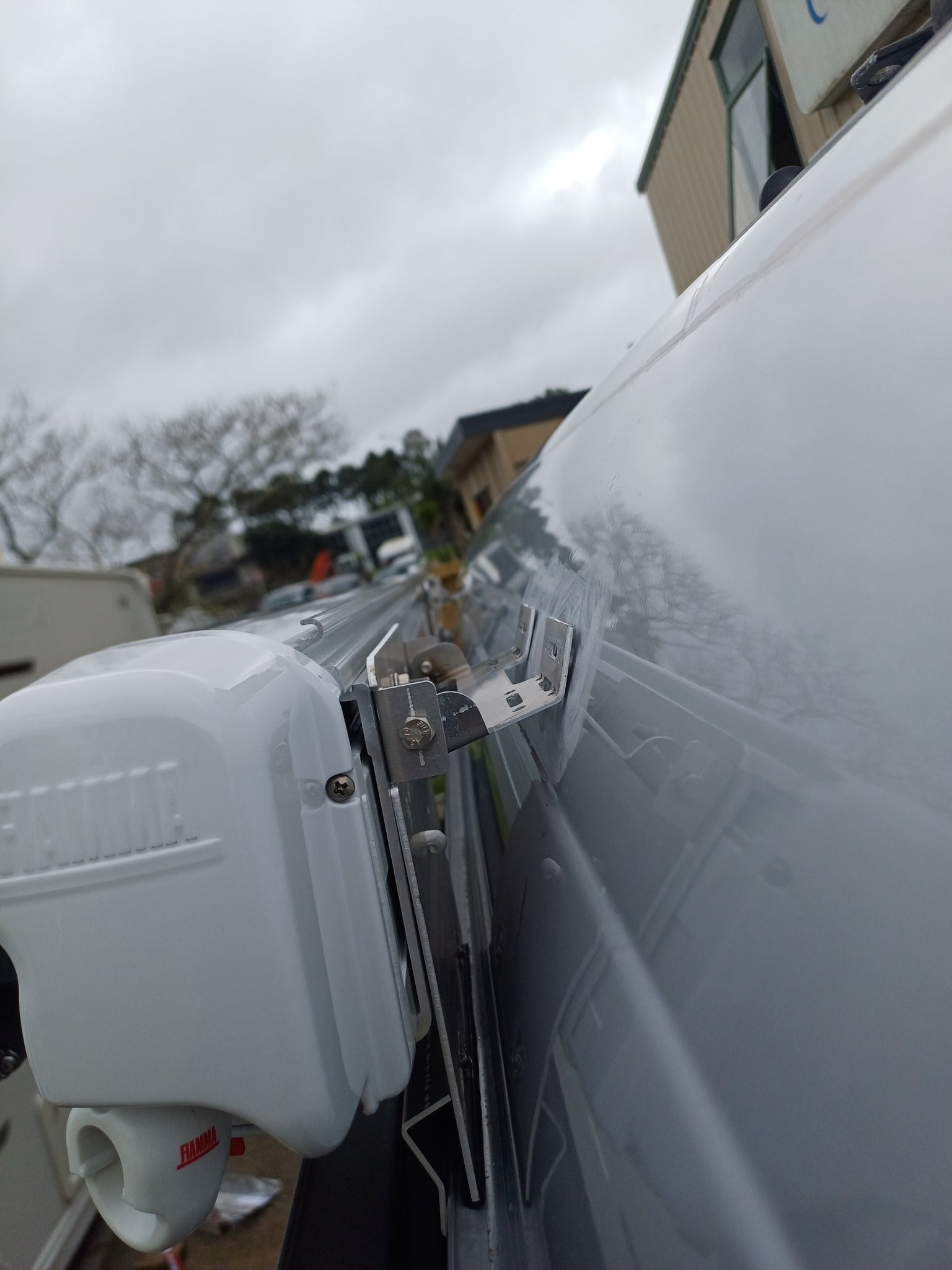

This is a wall-mounted awning fixing kit designed for fitting either Fiamma or Thule wall awnings to the side of Toyota Coasters, Toyota Hiace, or any vehicle with gutters.

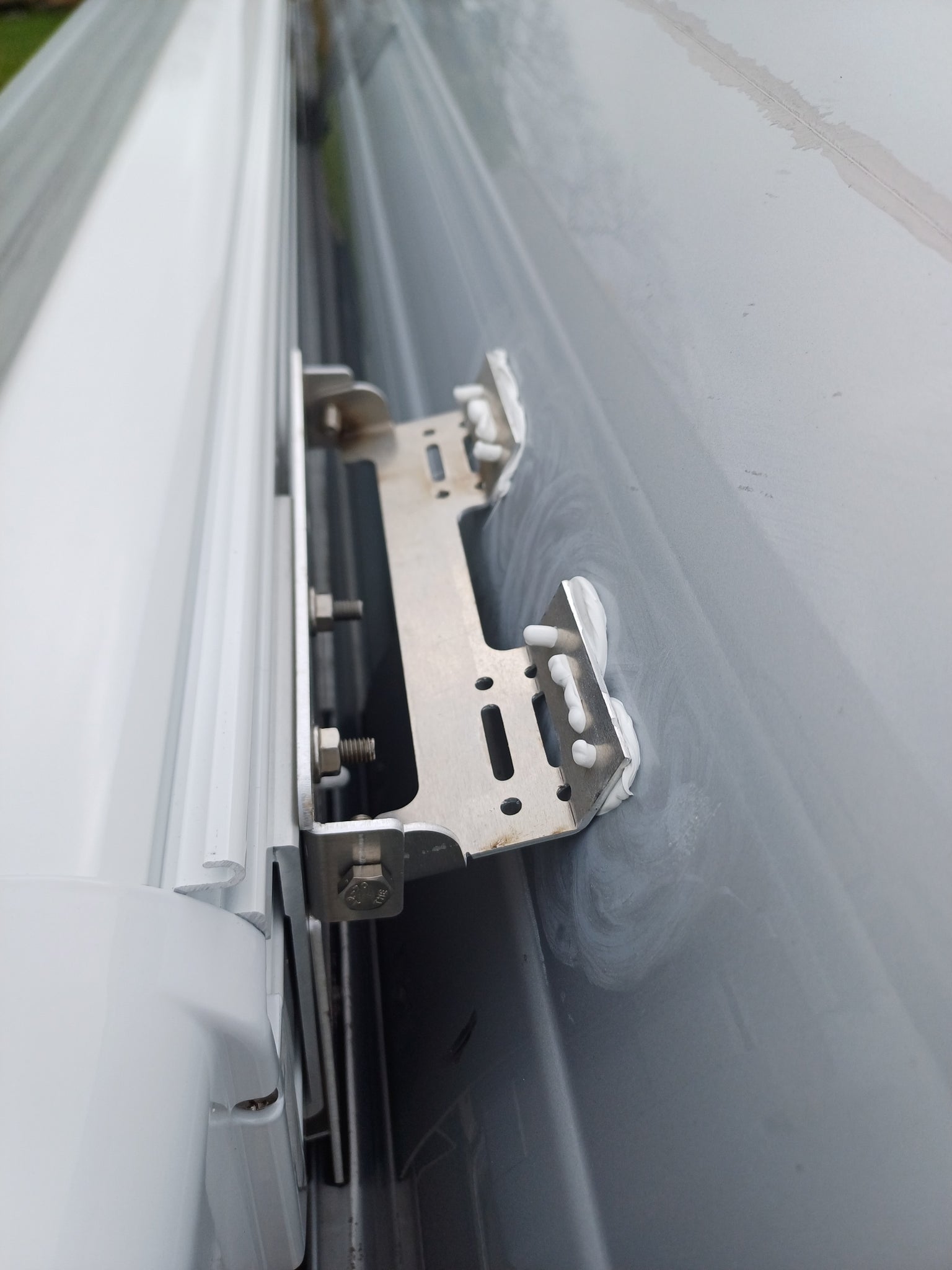

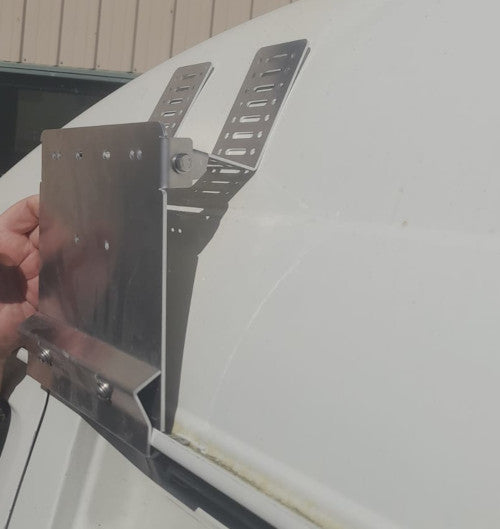

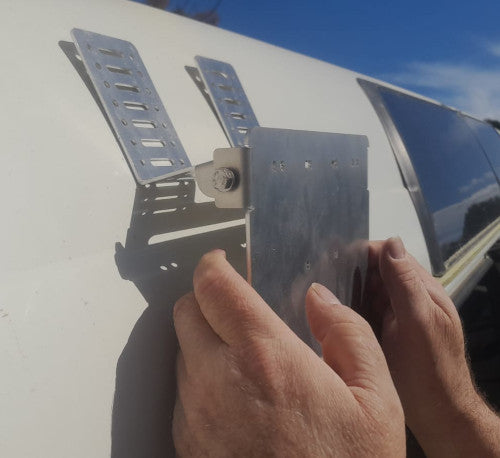

Simply clamp these adaptor brackets on the gutter in a location specified by the awning instruction manual, bend and shape the slotted tabs at the back of the bracket to the curve of the roof side and set the first bracket to a vertical position, now bolt on the Fiamma or Thule wall-mounted bracket.
Once one bracket is set in place, line up the other brackets to the same angle at the correct location along the gutter as specified by the awning manufacturer.
In both cases will use the standard mounting bracket kit supplied with the new awning in conjunction with these brackets and bolt them straight onto the predrilled holes on this adaptor bracket.
Features

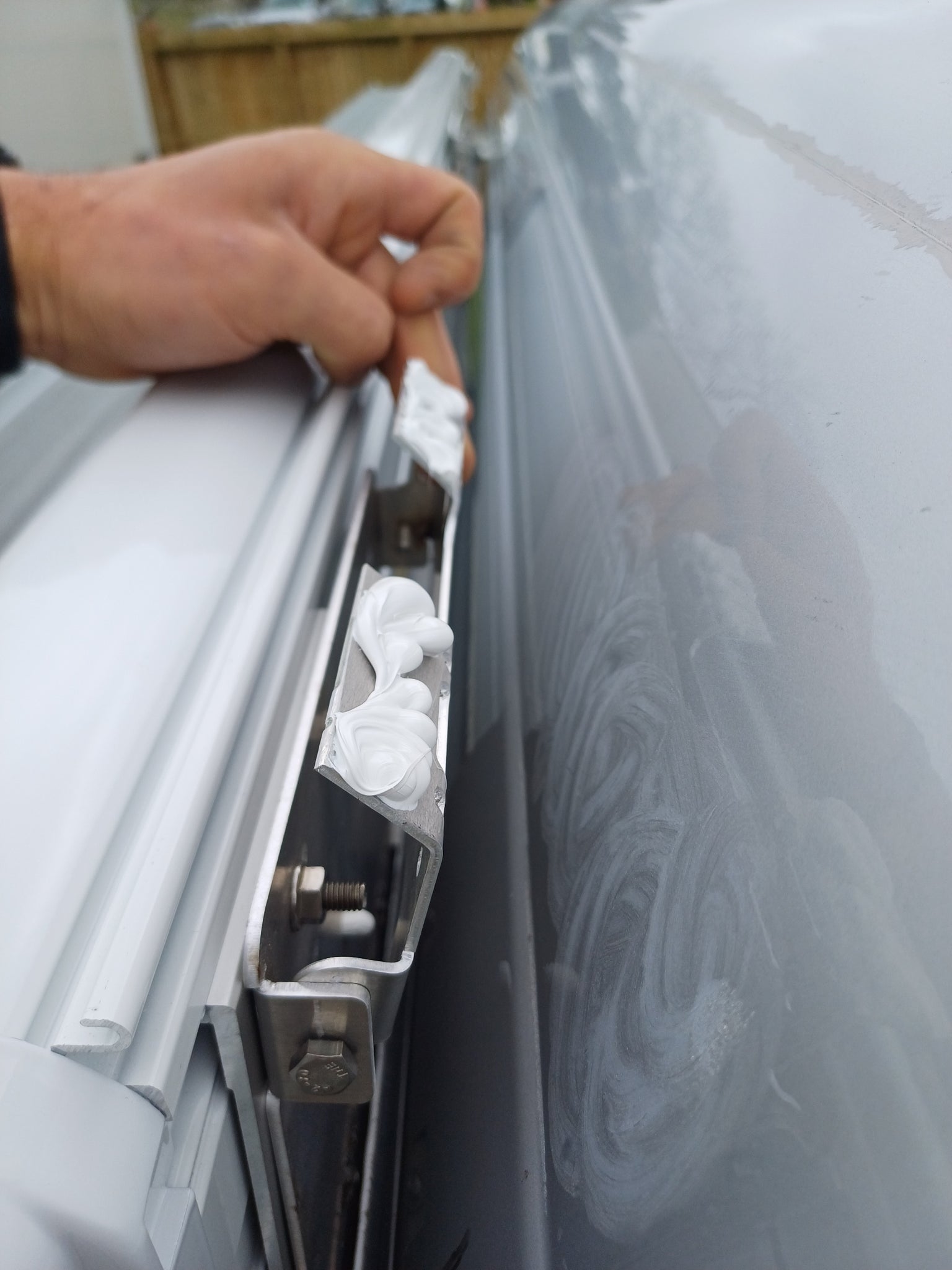

Fits onto the roof of most vehicles with gutters, as the tabs are easily shaped to the profile of the roof, using Sikaflex and prop rivets attach the rear brackets to the roof wall.
Pack contains 3 complete brackets, with all the bolts nuts, and pop rivets required
Also suits Thule wall-mounted awnings, but you would require 4 brackets per awning
These brackets can be installed at our workshop in Silverdale. Please contact us for further information regarding installation costs. Tel: 09 4278247 Email: info@vantagerv.nz
