Motorhome roof rack for the long wheel base (lightweight version)
Motorhome roof rack for the long wheel base (lightweight version)
Motorhome roof rack for the long wheel base (lightweight version)
Motorhome roof rack for the long wheel base (lightweight version)
Motorhome roof rack for the long wheel base (lightweight version)
Motorhome roof rack for the long wheel base (lightweight version)
Motorhome roof rack for the long wheel base (lightweight version)
Motorhome roof rack for the long wheel base (lightweight version)
Motorhome roof rack for the long wheel base (lightweight version)
Motorhome roof rack for the long wheel base (lightweight version)

Motorhome roof rack for the long wheel base (lightweight version)

$1,199.00
/
Tax included. Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon

Specifically designed and made in NZ for the Mercedes Sprinter, VW Crafter, Fiat Ducato, and Renault Master panel vans or motorhomes, buy this roof rack, and you will have a very handy place to store your kayaks, canoes, surfboards, paddleboards, fishing gear, or rowing boat

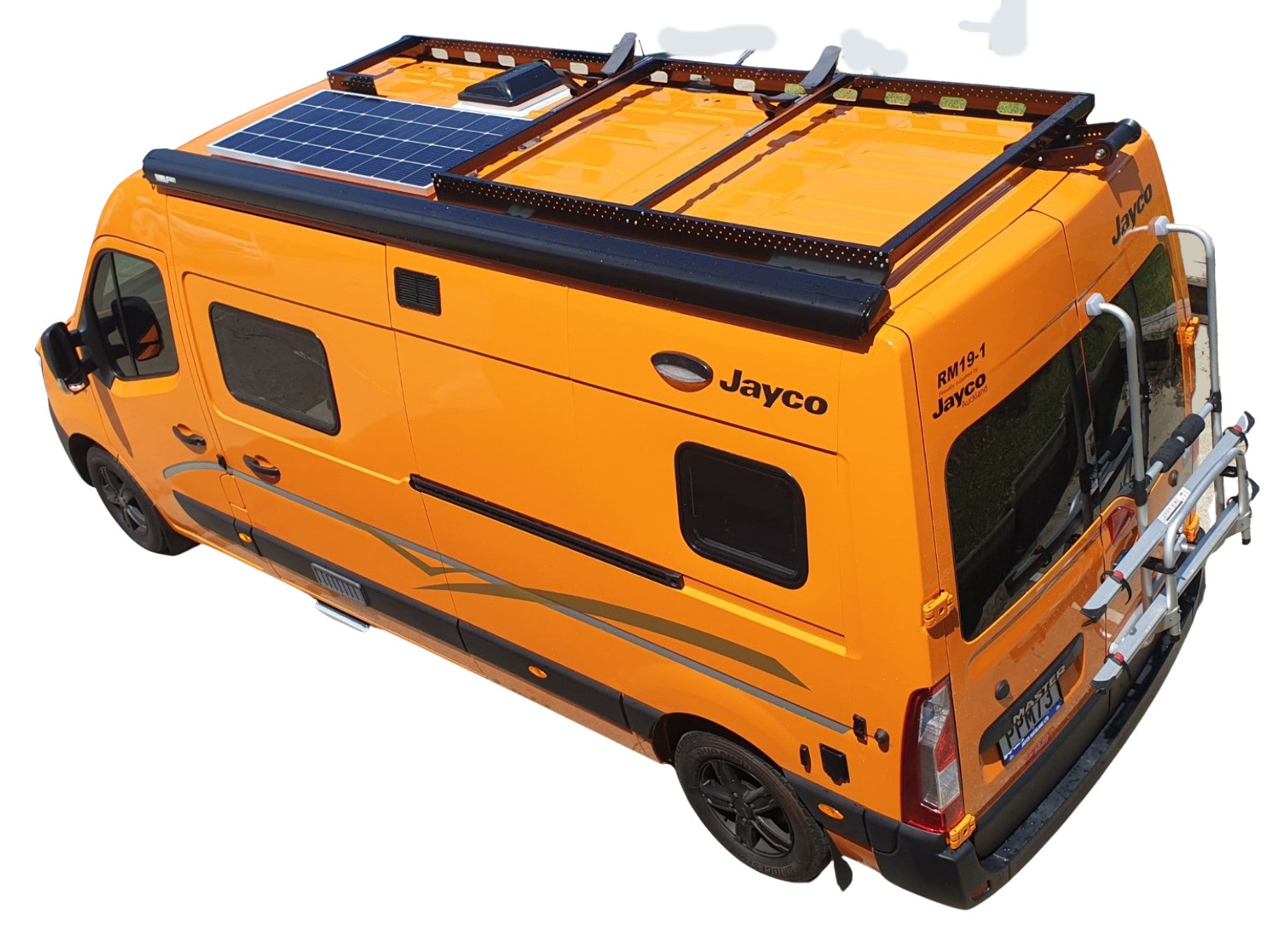

This version is designed for vehicles without a roof mount awning; if you already have a vehicle with a roof mount awning, you will need to buy the VRV-MercRRA, which mounts behind the roof mount awning. (as seen on the orange vehicle)

Features

  • A lightweight aluminum construction
  • Available in black powder-coated
  • Sleek and ergonomic in design
  • Adaptable in length
  • Very versatile, as the cross-support rails can be fitted anywhere along the side frames
  • Supplied with three lightweight cross rails, fit as many rails as you like just let us know if you want more
  • Compatible with the VRV rear or side-mounted ladder (please order this separately)
  • Upgradeable for heavy load capacity; see the slightly more expensive heavy-duty version



Technical Information

  • Kit contains the following:
  • 2 x standard right and left-hand side rails 2355mm long
  • 2 x short right and left-hand 1400mm long
  • 3 x light-weight cross rails with mounting brackets
  • 2 x Sloping end caps for the front
  • 2 x  spoiler shaped undercut rear caps
  • 1 x Stainless steel assembly hardware kit
  • Total length of rack 2355mm + 1400mm = 3755mm plus the end caps
  • Height from the roof 120mm
  • Max weight capacity 200kg

To arrange a fitting, please contact us

Fitting method

Our roof racks were initially designed for motorhomes and caravans made from lightweight products such as foam aluminum or fiberglass composite boards. These body designs are not suited to dealing with the point loads exerted by the pads of traditional roof racks.

Our roof racks spread the load over the entire length of the side rails, preferably on the side edge of the vehicle where the wall and roof meet and where the manufacturers use high-density foams to strengthen the edges. The side rails are bonded in situ using high-quality modern urethane products similar to those used for constructing motorhome bodies.

Stainless steel tech screws are sometimes used but only to anchor the roof rack in place while the urethane sets.

Our roof racks have become very popular with motorhomes or camper vans constructed within standard commercial panel vans. We apply the same mounting method to the roofs of these vans with excellent results.

Our racks can carry heavy loads if the heavy-duty tube is used. As an added bonus, we can fit a wall-mount awning to the side of the roof rack rail.
