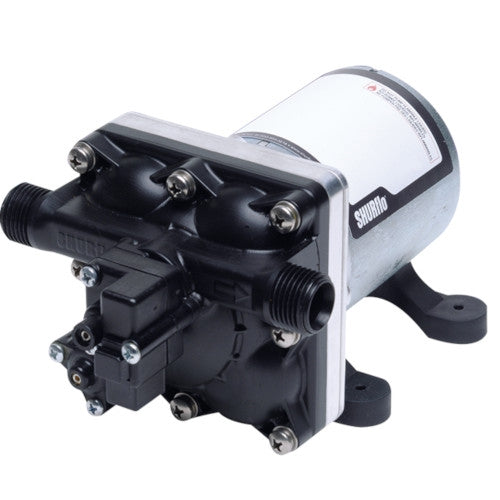

Surflo Diaphragm Pump

Surflo Diaphragm Pump

$177.15
/
Tax included. Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon

The pump design, which includes a distinctive one-piece diaphragm and internal by-pass, ensures high performance and a long life. The low noise emissions and the 4 chamber diaphragm make it the ideal pump for motorhomes and caravans.

Please note this pump must be installed with a pre filter.

These units can be installed at our workshop in Silverdale. Please contact us for further information regarding installation costs. Tel: 09 4278247 Email: info@vantagerv.nz

Features

  • Quiet
  • 4 chamber diaphragm pump
  • Thermally protected
  • High performance
  • Requires a pre-filter
  • Food grade plastics designed to meet German hygiene specs

Technical Information

  • CE & C-Tick compliant
  • Weight 2.3kg
  • Shu off pressure: 45 Psi (3.1bar)
  • Flow rate 10 Litre/minute
  • 12V DC
  • Consumption 5.2 Amp Max
  • Housing: Aluminium, steel and Food grade plastic
  • Dimensions: 205mm x 125mm x 111mm (lxwxh)
  • 1 Year Factory Warranty
