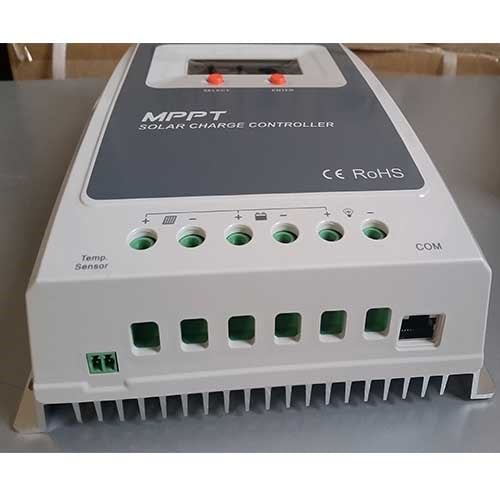

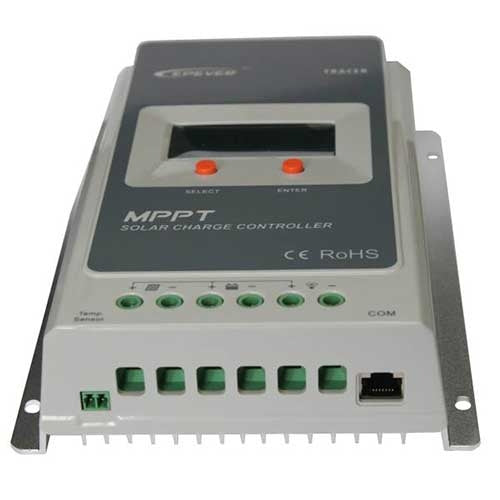

The TRACER EPEVER Solar MPPT type controller, is a 30 Amp solar controller broadly used for motor-home solar systems. This controller has a built in display, which tells you what the voltages are at the panel and at the battery. It also indicates amps being used and being produced.
MPPT (or Maximum Power Point Tracking) is currently, as far as we know, the most efficient type of solar controller and performs better in all environmental conditions.
This is a 30 amp off grid solar controller, ideally suited for motor-homes, caravans and small off grid homes or baches, this particular controller has a common negative earth, the negative earth is used for switching the loads on and off, which is a cheaper production method than switching the positive terminal, negative switching can interfere with certain grounded appliances, unlike the more expensive TRACER BN professional series, which is switched on the positive load terminals. If you are planning to use this controller without running loads, then there is no issue.
Please order digital display if required under "CHOOSE YOUR OPTIONS"
These units can be installed at our workshop in Silverdale. Please contact us for further information regarding installation costs. Tel: 09 4278247 Email: info@vantagerv.nz
MPPT (or Maximum Power Point Tracking) is currently, as far as we know, the most efficient type of solar controller and performs better in all environmental conditions.
This is a 30 amp off grid solar controller, ideally suited for motor-homes, caravans and small off grid homes or baches, this particular controller has a common negative earth, the negative earth is used for switching the loads on and off, which is a cheaper production method than switching the positive terminal, negative switching can interfere with certain grounded appliances, unlike the more expensive TRACER BN professional series, which is switched on the positive load terminals. If you are planning to use this controller without running loads, then there is no issue.
Please order digital display if required under "CHOOSE YOUR OPTIONS"
These units can be installed at our workshop in Silverdale. Please contact us for further information regarding installation costs. Tel: 09 4278247 Email: info@vantagerv.nz
Features
- Advanced Maximum power Point Tracking technology, with efficiency gains of no less than 99.5%
- High quality components, enabling conversion efficiency of up to 98%
- Ultra fast tracking speed
- Connection for Remote Temperature sensor for monitoring battery temp
- Indicators for setting timer or battery type
- Setting button for load work mode status selection
- Solar Module terminal connection blocks
- Battery terminal connection blocks
- Load terminal connection blocks

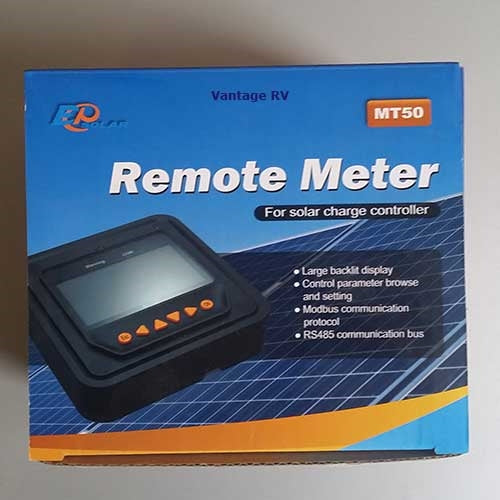

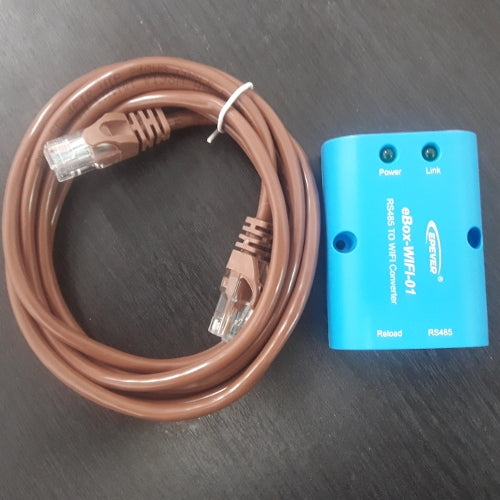

- RS-485 Communication Interface for remote digital MT-50 display or PC monitoring
Technical Information
- System voltage 12/24 VDC Auto
- Rated charge current 30A
- Rated discharge current 30A
- Max PV input voltage 100v
- Max PV Input power for a: 12 volt system 390 watt / 24 volt system 780 watt
- Dimension: 165mm x 55mm x 230mm (wxdxh)
Minimum Requirements
- Recommended cable diameter from solar panel should be no less than 4mm2
- Solar controller should always be fitted in dust-free, dry environment.
- Always run loads from the load terminals on the right of the solar controller, unless the draw is greater than 20 Amp. That way you can always monitor how much energy you are generating and using
