The rigid tank probe should be bought in conjunction with a tank monitor display
The tank transmitter has been designed for measuring tank levels precisely. It can be used for fresh water, grey water and black water in motorhome, caravan and boat tanks.
It will work with plastic, metal, aluminium, stainless steel or fiberglass tanks
Use this tank sensor in conjunction with a Voltronic tank display on shallow tanks between 120mm and 240mm in depth
These units can be installed at our workshop in Silverdale. Please contact us for further information regarding installation costs. Tel: 09 4278247 Email: info@vantagerv.nz
Technical Information

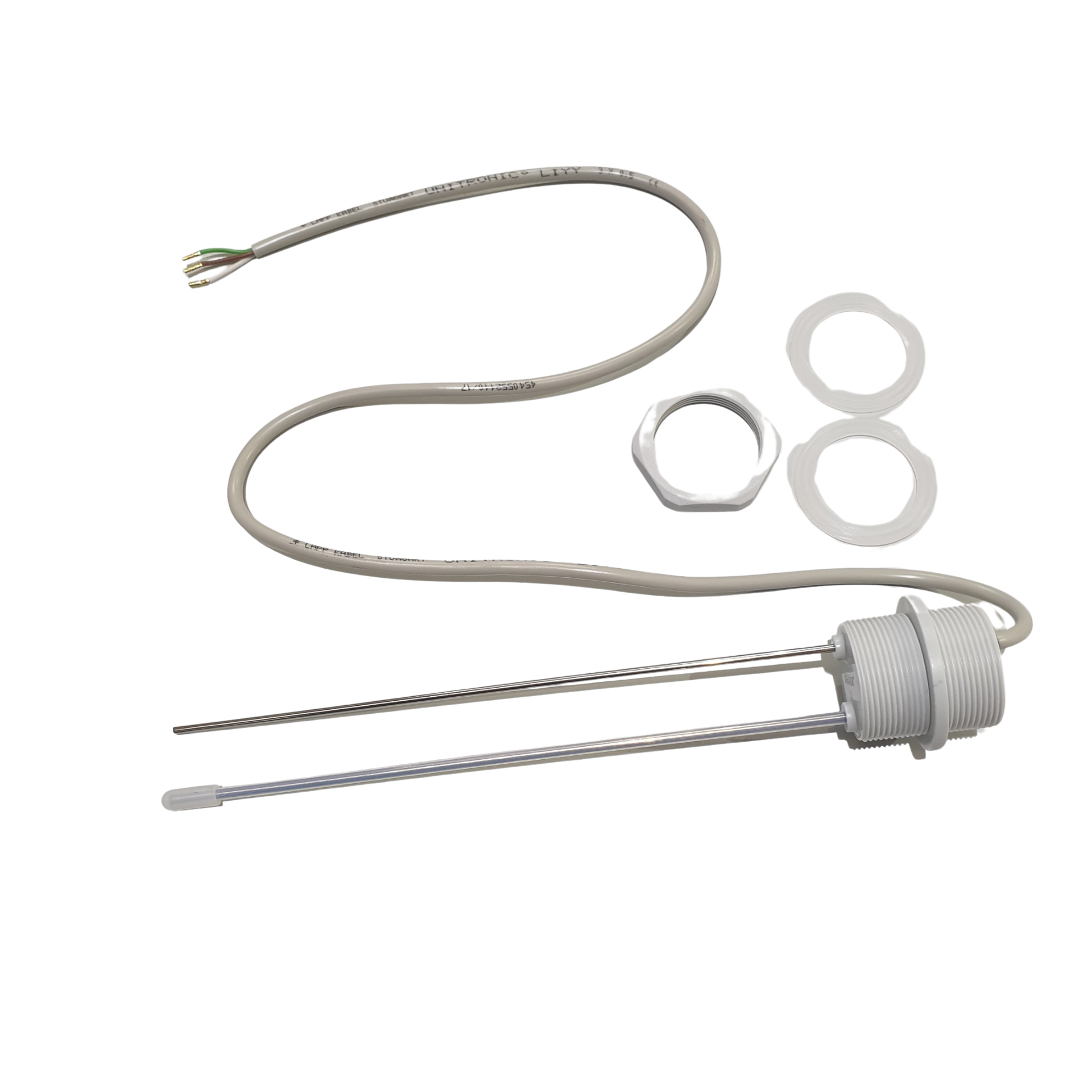

- It must be mounted from the top, so you will need access to the top of the tank
- Requires a 38mm mm hole to fit or a thread PG29
- Cut the probes with a clearance of about 10 to 20mm from the bottom of the tank wall

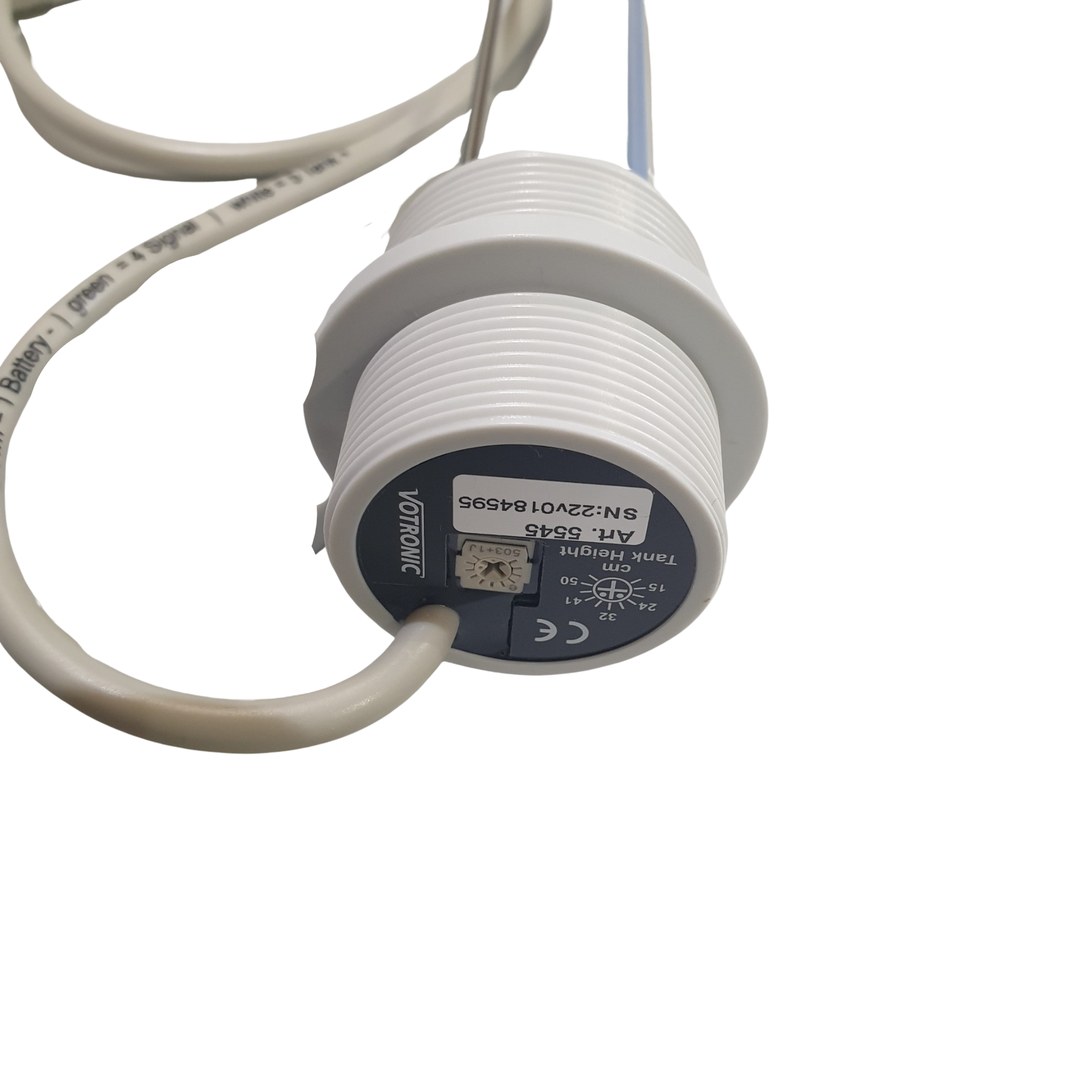

- Probes settings can be adjusted to suit tank using the tank height adjuster at the top of the probe
- 12 volt and 24 volt DC (voltage range between 10v - 32v)
- Current consumption of 1mA (when OFF) and 30 mA (when the display is 100% ON)
